AL Karawan Steel & Welding is a water storage solution company, specializing in the design, manufacture,
supply and erection of sectional pre engineered Zincalume® steel water tank as well as GI Powder Coated & Epoxy Coated cylindrical flat panel tanks. Innovation inspired the design of the Al Karwan Steel & Weldingtank in which we use premium quality materials to producearange of storage tanks
AL Karawan Steel & Welding is continually develops material & design to meet high level market demands and expectations. Our water storage products serve to provide global market requirements with turnkey solutions and engineering.
AL Karawan Steel & Welding aims to be the world’s best water conservation and storage solutions engineering & manufacturing company.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.
Bibendum placerat massa enim eget diam conubia ac metus posuere tempor letius.

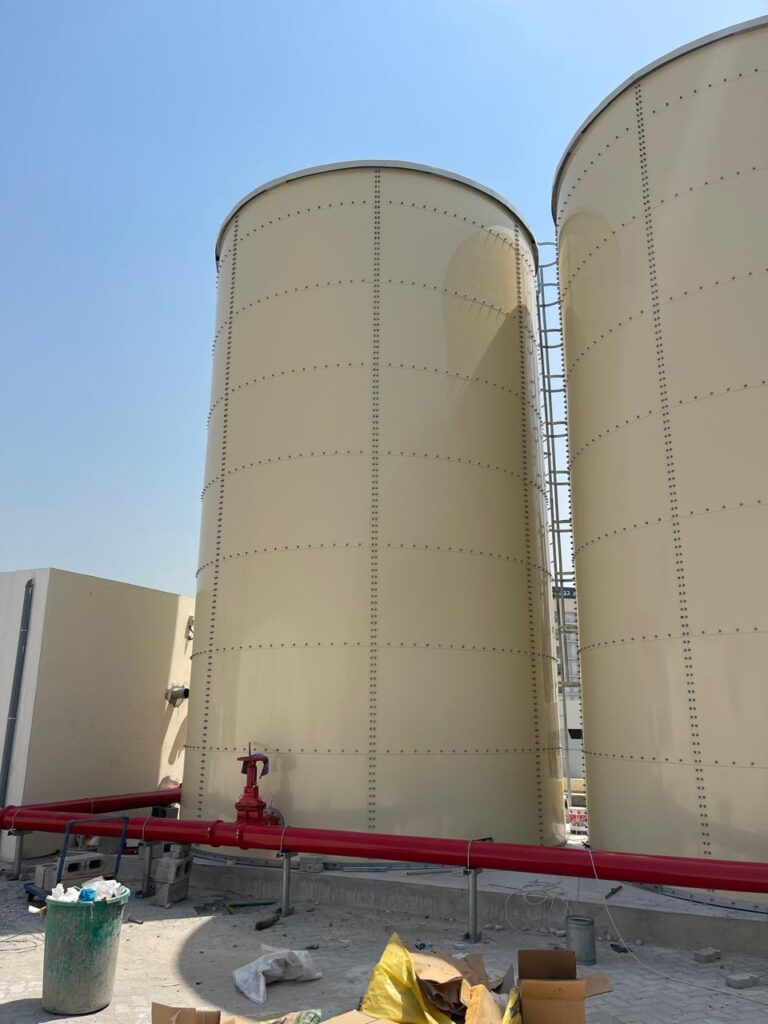

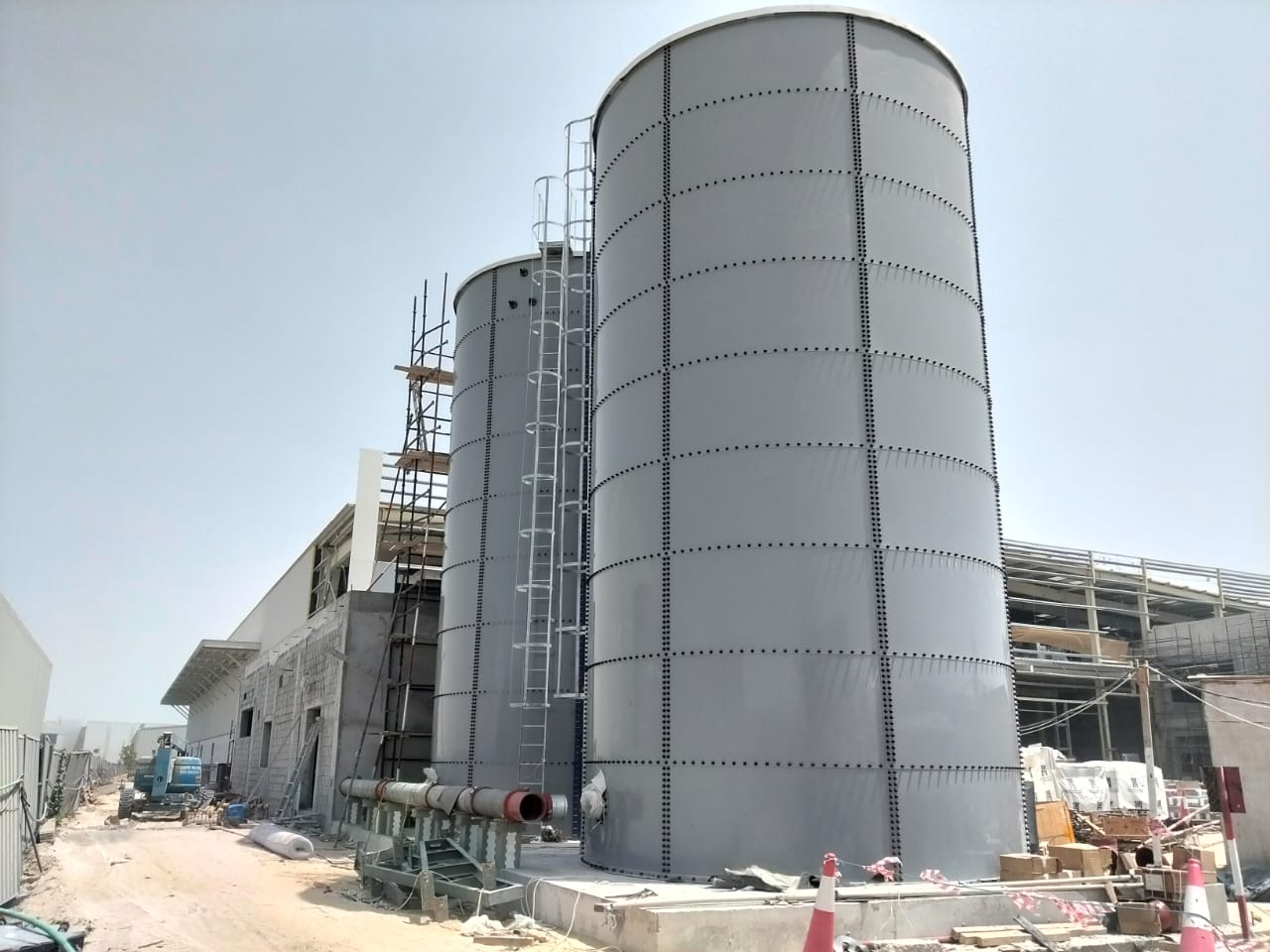

Al Karwan Solutions AL Karawan Steel & Welding Cylindrical corrugated as well as GI Powder Coated , epoxy Coated tank wall panels are specifically engineered to give strength, as well as a pleasing aesthetic appearance. The panels are consistent in size but vary in thickness depending on the tank height and the tank diameter and designed for installation onto a reinforced concrete foundation beam. The panels are joined vertically using a series of Hot Dipped Galvanized high tensile bolts. to protect against sewere climatic conditions, tampering or other unforeseen problems, external bolt caps are fitted to the tank on each bolt
Our Heavy Duty Self Supporting Dome Roof structure is designed for use without the requirement of internal vertical support columns. Dome Roof Sheets are connected to Hot Dip Galvanized structural Roof Truss members which are secured with a strong bolted connection to the tank wall, giving a direct load transfer from the roof structure to the tank wall and then to the ground.
Internally, we utilize a High Grade, Heavy Duty impervious PVC membrane liner with an internally woven reinforced scrim to provide high water pressure resistance.
WALL PANELS: GI SHEET/ Zincalume (Optional)
COATED STEEL: Powder Coated / epoxy Coated
STEEL GRADE: S320GD / ASTM A653M
COLORS: All basic earth colors (Gray & Cream)
BOLTING: M12 HDG Coated bolts with washer & nut flanged head high tensile
ROOF SHEETS: Custom Orb Profiled Steel Panels
COATED STEEL: PPGI Single Skin corrugated sheet S Type
STEEL GRADE: G550 High Tensile Zincalume (Optional)
COLORS: Off white (RAL 9002)
STRUCTURE: Self Supported Dome Roof with HDG trusses
DESCRIPTION: Reinforced PVC
GRADE: Commercial Quality – High Grade
LIQUIDS: Potable, Salt, Grey & Black Water
PRODUCT: Factory made & Pre-tested liner
STEEL GRADE: Hot Dipped Galvanized
SAFETY: External Ladder, Ladder cage & Platform Railing & bottom a manhole
MATERIAL: Hot Dipped Galvanized
TYPES: Victaulic, Rolled, Grooved & flanged
VALVES: Ball, Butterfly, float valves
Level Indicators, Geotextile
ASTM A653M
EN10326-10327
FM Approvals Class 4020 Sec. 2.4.2 to 2.4.5, AWWAD103-09 Sec. 5.2.1 & 5.2.2
ASTM A653M
NFPA-22:2008
