INTRODUCTION

AL Karawan Steel & Welding/AL KARAWAN SOLUTIONS

is a water storage solution company, specializing in the design, manufacture, supply and erection of sectional pre engineered Zincalume® steel water tank as well as GI Powder Coated & Epoxy Coated cylindrical flat panel tanks.

Innovation inspired the design of the Al Karwan Steel & Welding tank in which we use premium quality materials to produce a range of storage tanks

Our Mission, Philosophy and Values:

Mission “Making AL Karawan Water Tank – The tank of choice”
Philosophy “Water is a Blessing , Waste is not an option”
Values – “Innovation through Quality Products & Services”

AL Karawan Water Tank Features

GI Powder Coated /Epoxy Coated Panel Tank
Corrugated Zincalume Coated Steel Sectional Panels
Heavy Duty Reinforced Liners
Heavy Duty Fully Self Supported Dome Roof
External Ladders, Platforms, Access
Hatch’s and
Bottom manhole
Hot Dip Galvanized & Polyethylene Nozzles
Very Competitive Pricing
10 year Manufacture’s Warranty

AL Karawan Water Tank Applications:

Potable and Water Storage
Fire Water Storage
Grey and Black Water Storage
Salt and Brackish Water Storage

AL Karawan Water Tank Fields:

Residential & Commercial Building
Labour Camps
Industrial Factories
Desalination Plants
Sewage Treatment Plants
Pumping Stations
Power Plants and Substations
Agriculture and Farms
Irrigation & Landscaping

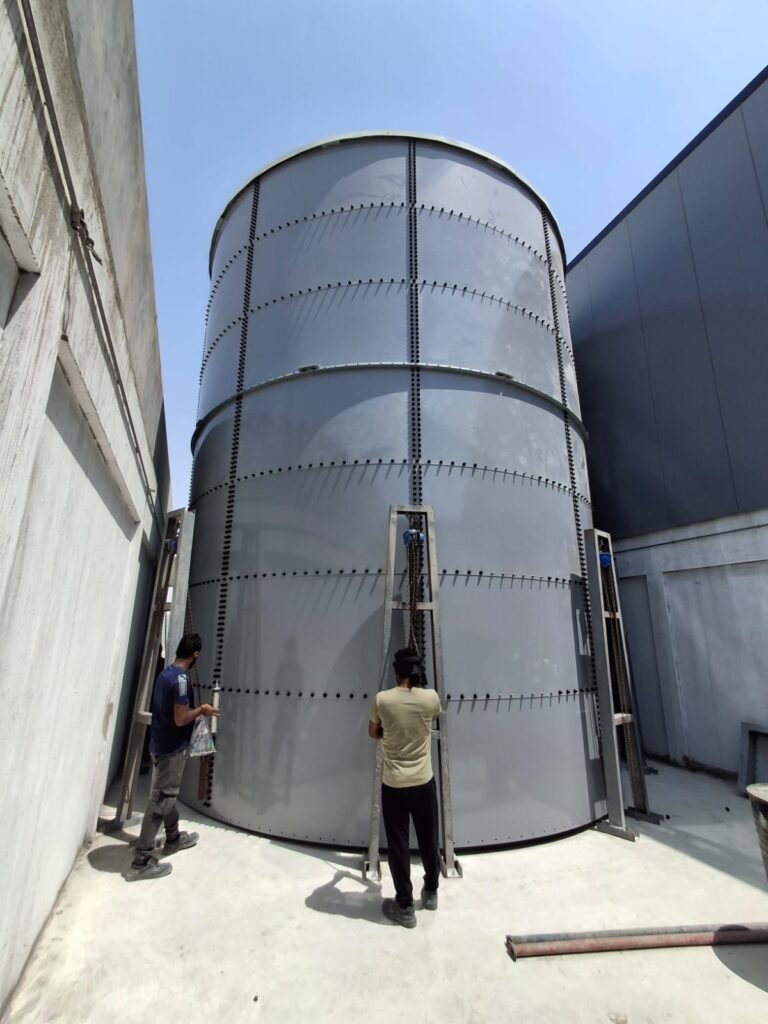

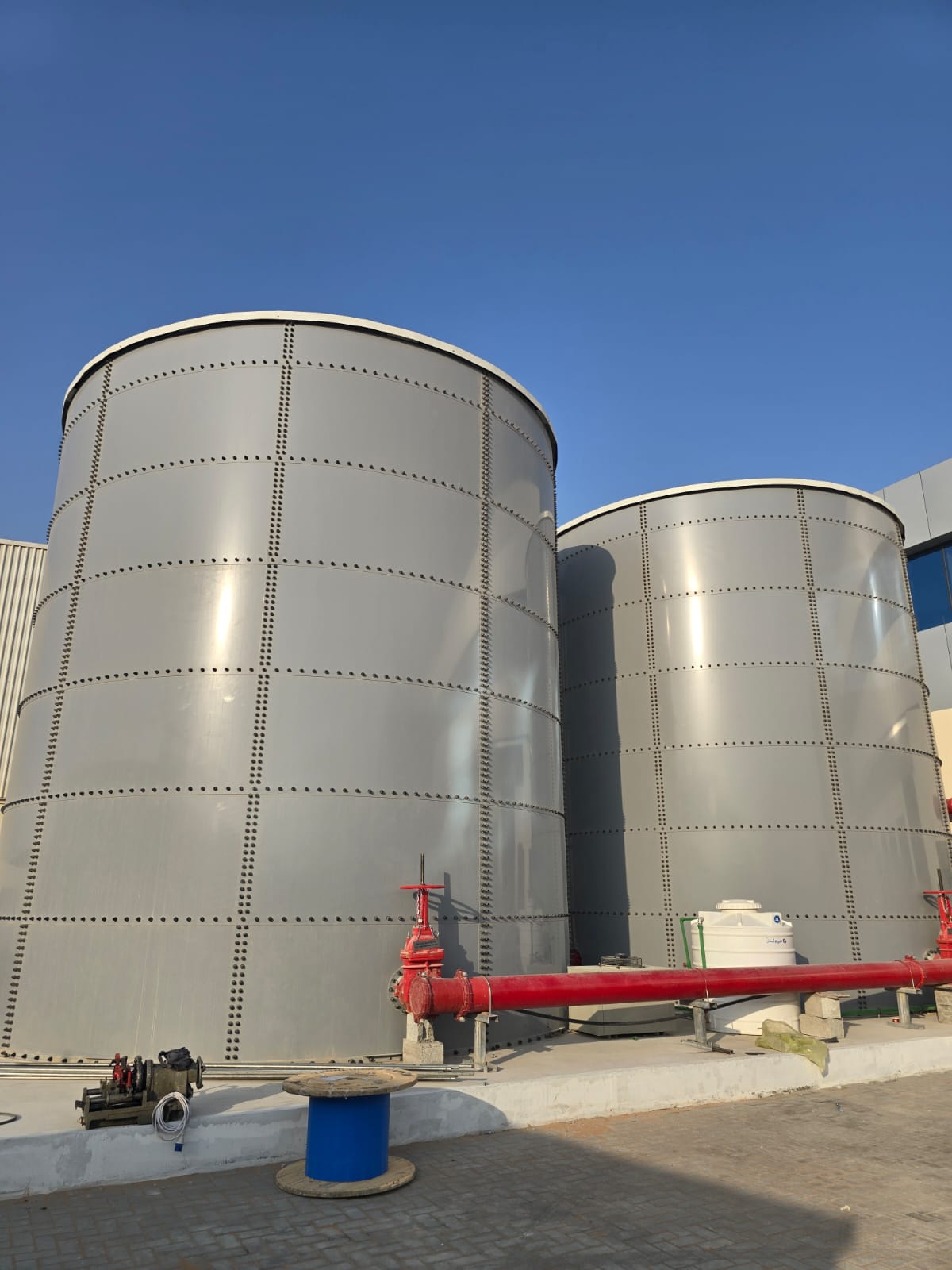

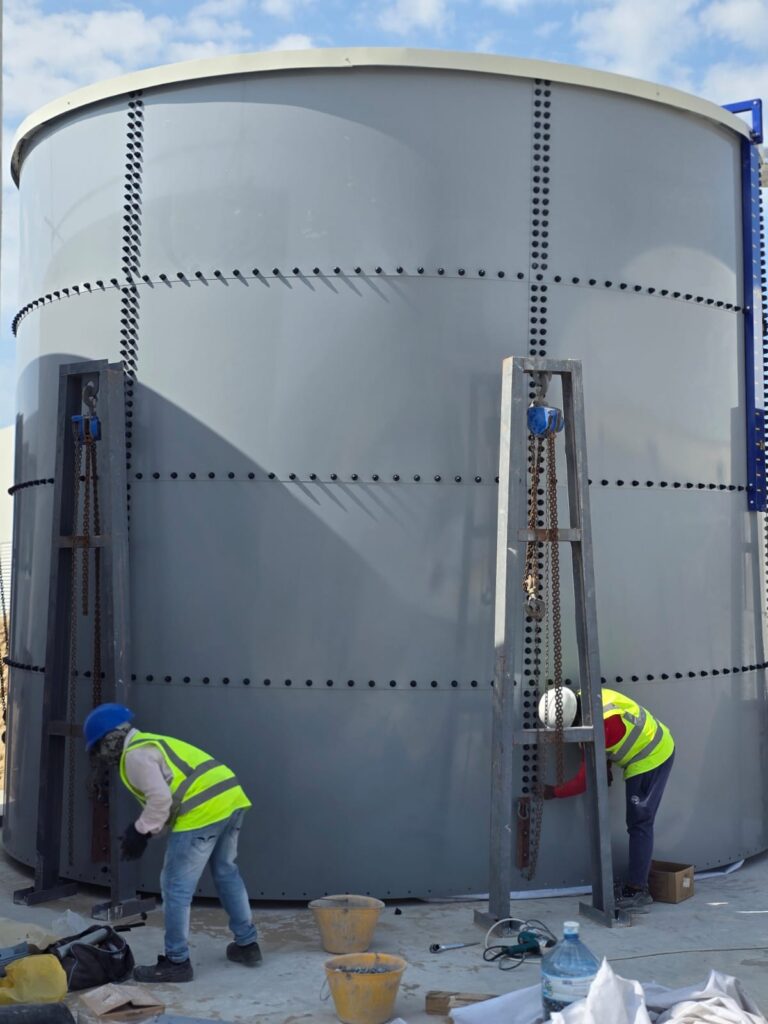

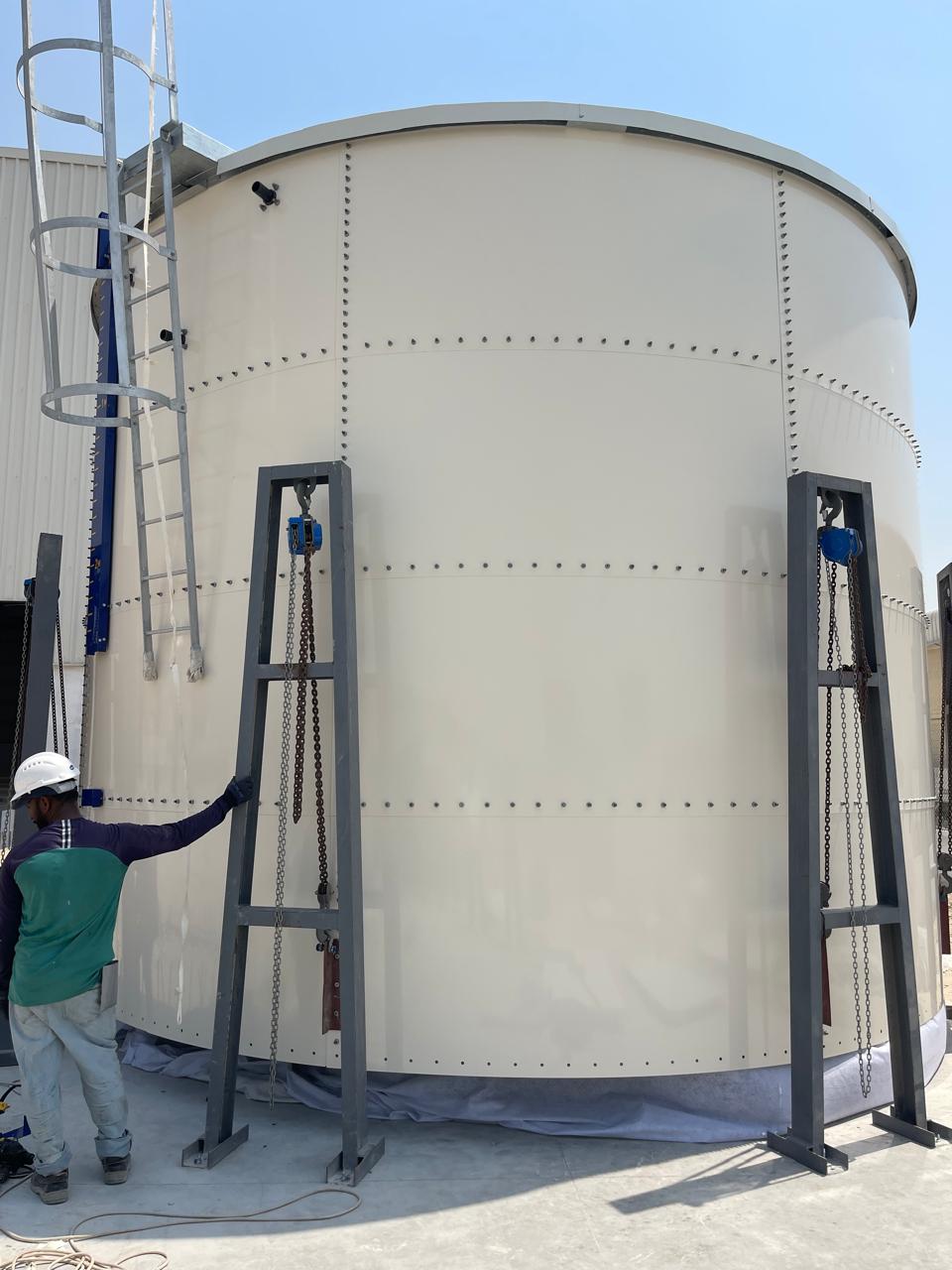

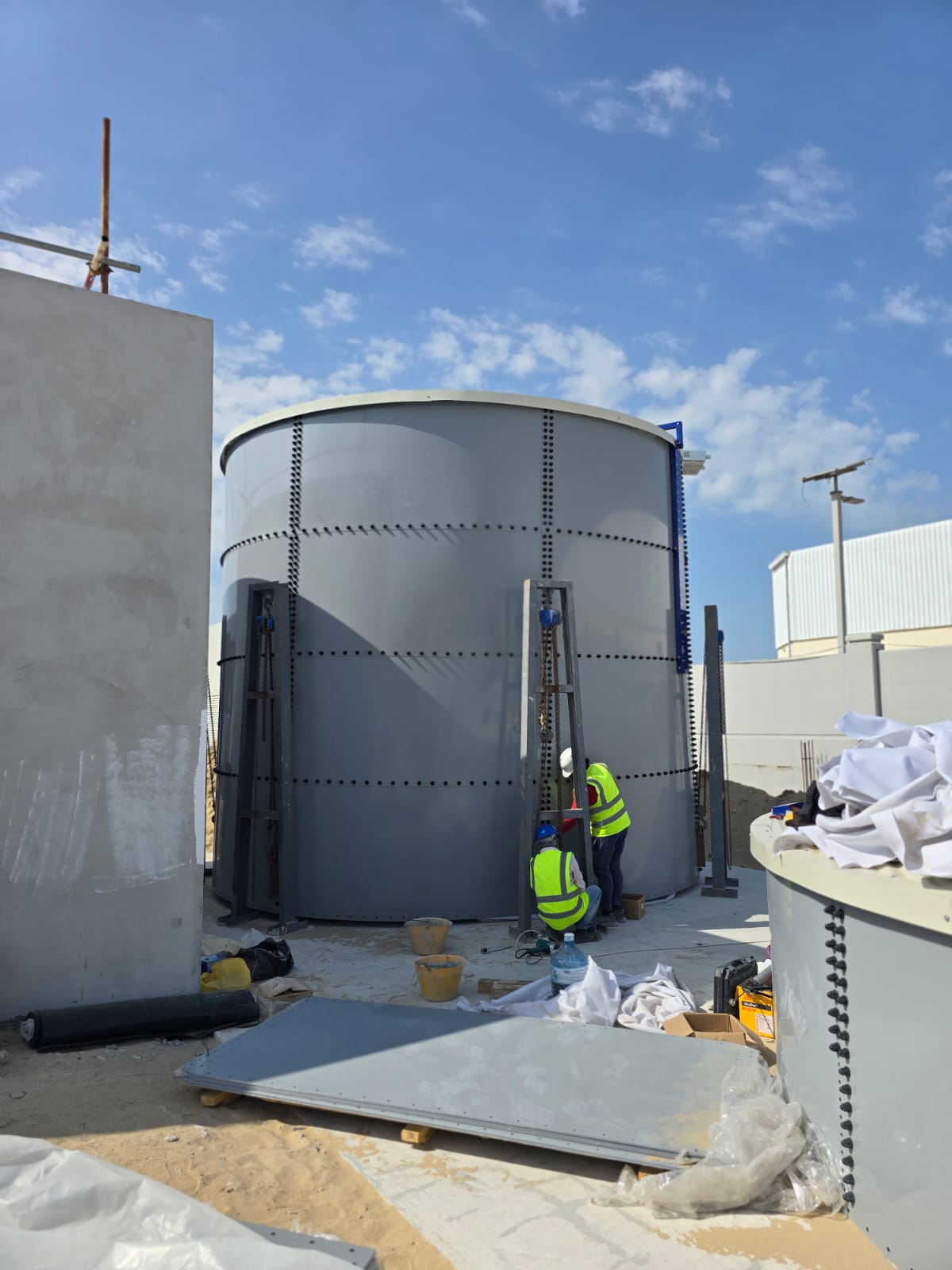

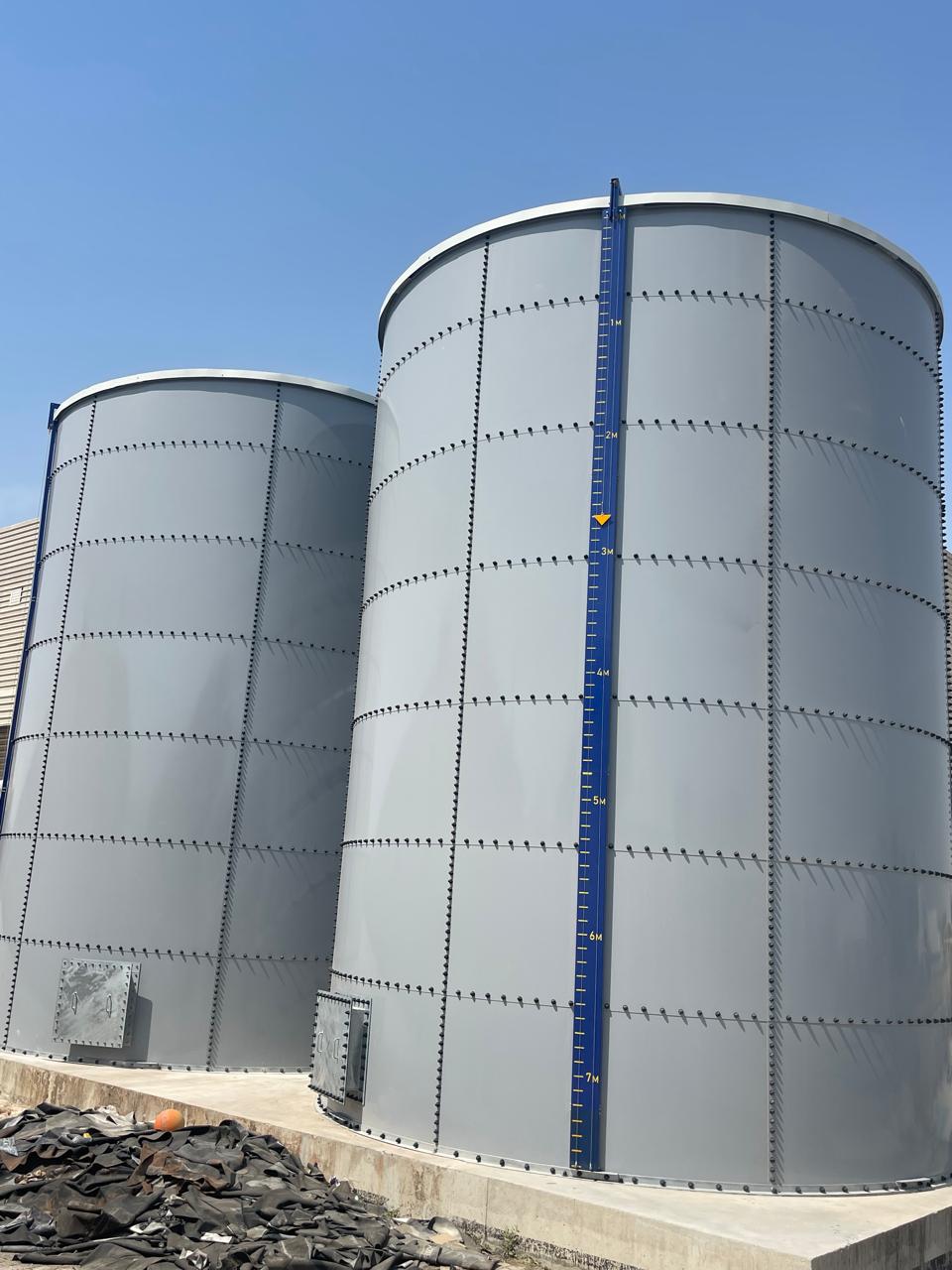

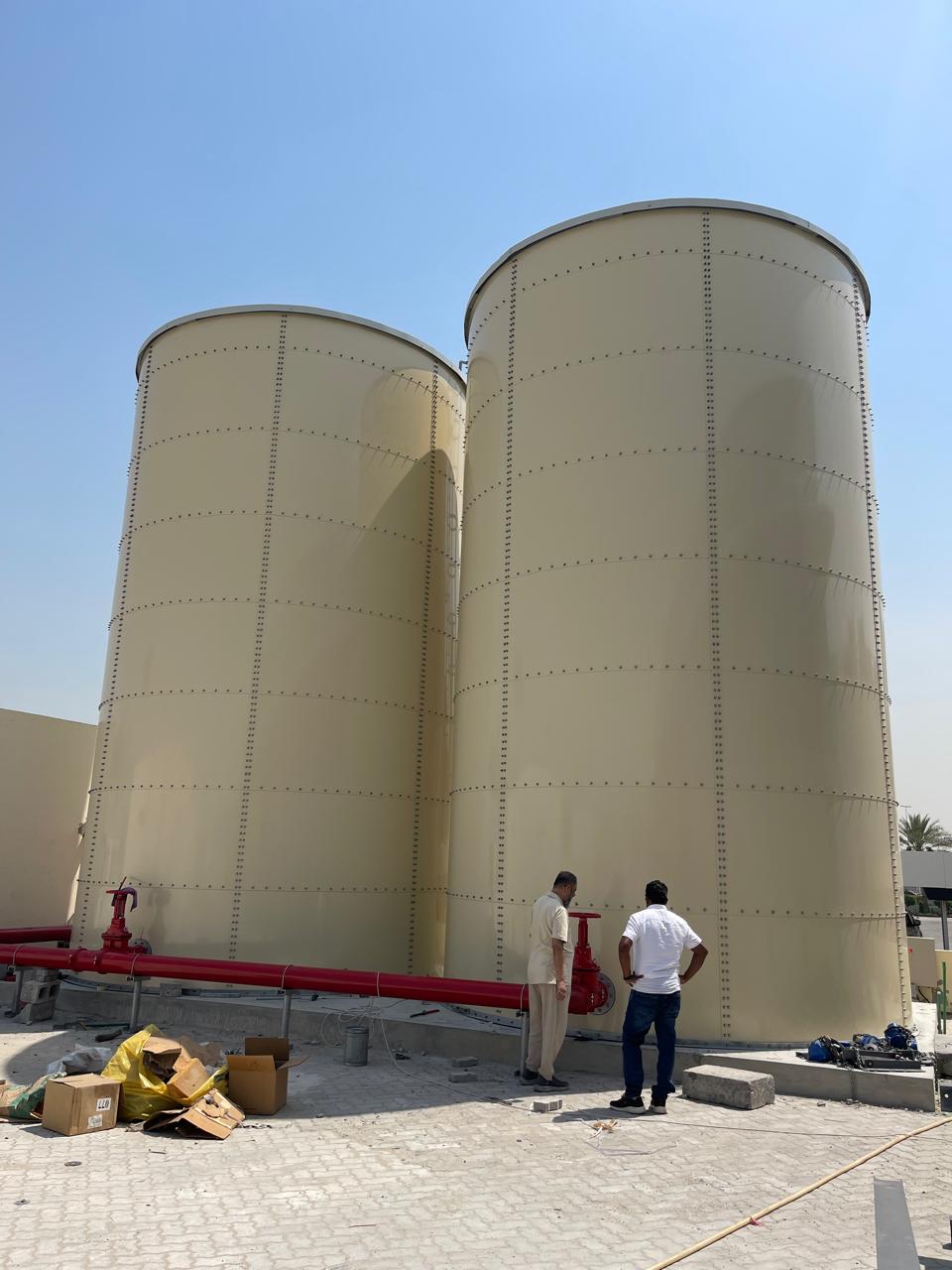

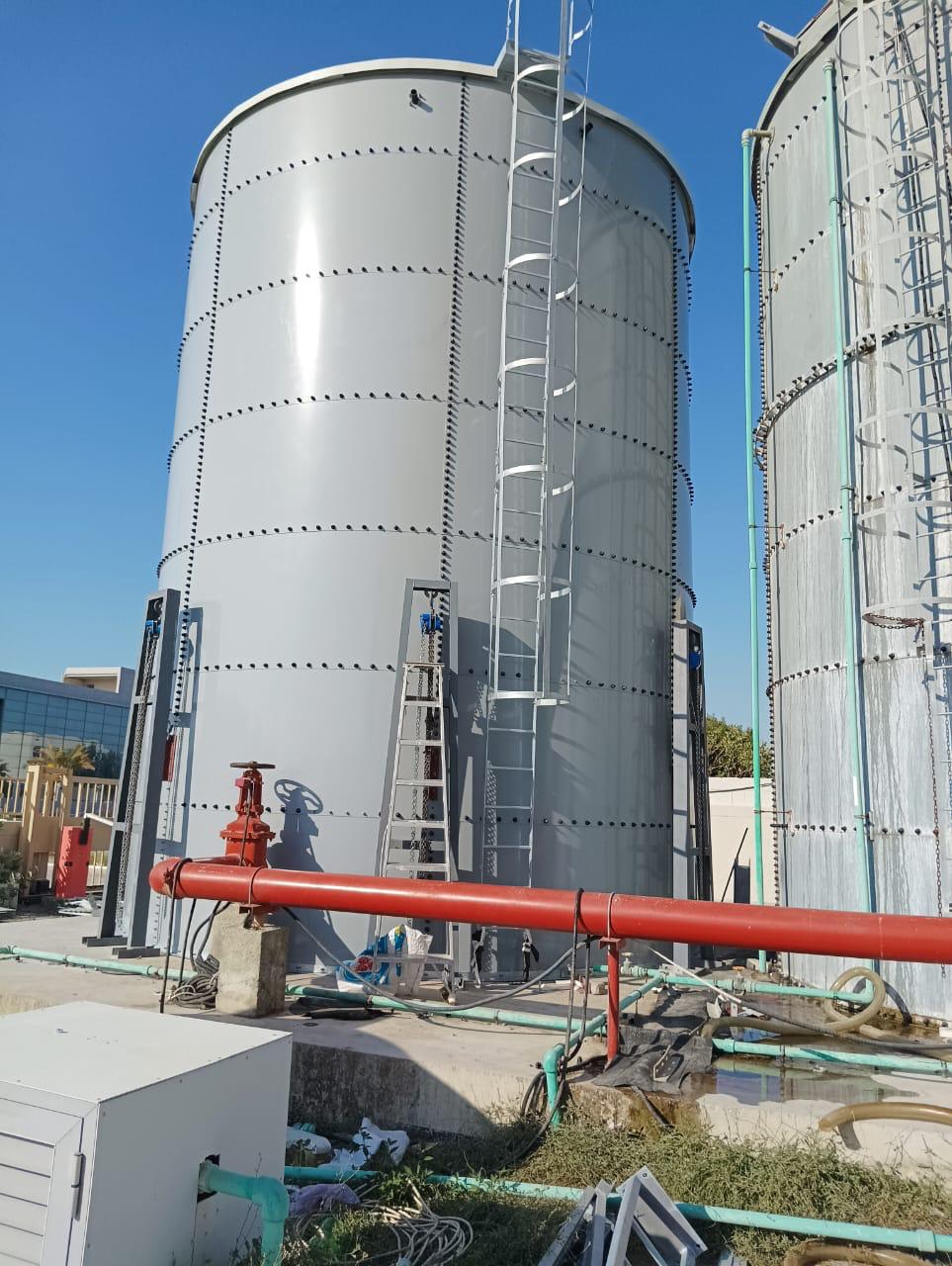

Our Projects

AL Karawan Steel & Welding

Our Heavy Duty Self Supporting Dome Roof structure is designed for use without the requirement of internal vertical support columns. Dome Roof Sheets are connected to Hot Dip Galvanized structural Roof Truss members which are secured with a strong bolted connection to the tank wall, giving a direct load transfer from the roof structure to the tank wall and then to the ground.

Design

DESIGN STANDARDS

Our Heavy Duty Self Supporting Dome Roofstructure is designed for use without therequirement of internal vertical support columns.

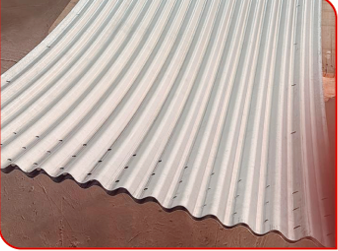

WALL STRUCTURE

WALL PANELS: GI SHEET/ Zincalume (Optional)
COATED STEEL: Powder Coated / epoxy Coated
STEEL GRADE: S320GD / ASTM A653M
COLORS: All basic earth colors (Gray & Cream)
BOLTING: M12 HDG Coated bolts with washer & nut flanged head high tensile

ROOF STRUCTURE

ROOF SHEETS: Custom Orb Profiled Steel Panels
COATED STEEL: PPGI Single Skin corrugated sheet S Type
STEEL GRADE: G550 High Tensile Zincalume (Optional)
COLORS: Off white (RAL 9002)
STRUCTURE: Self Supported Dome Roof with HDG trusses

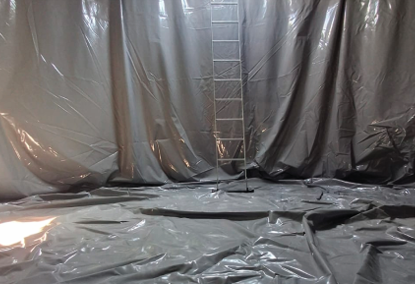

MEMBRANE LINERS

DESCRIPTION: Reinforced PVC
GRADE: Commercial Quality – High Grade
LIQUIDS: Potable, Salt, Grey & Black Water
PRODUCT: Factory made & Pre-tested liner

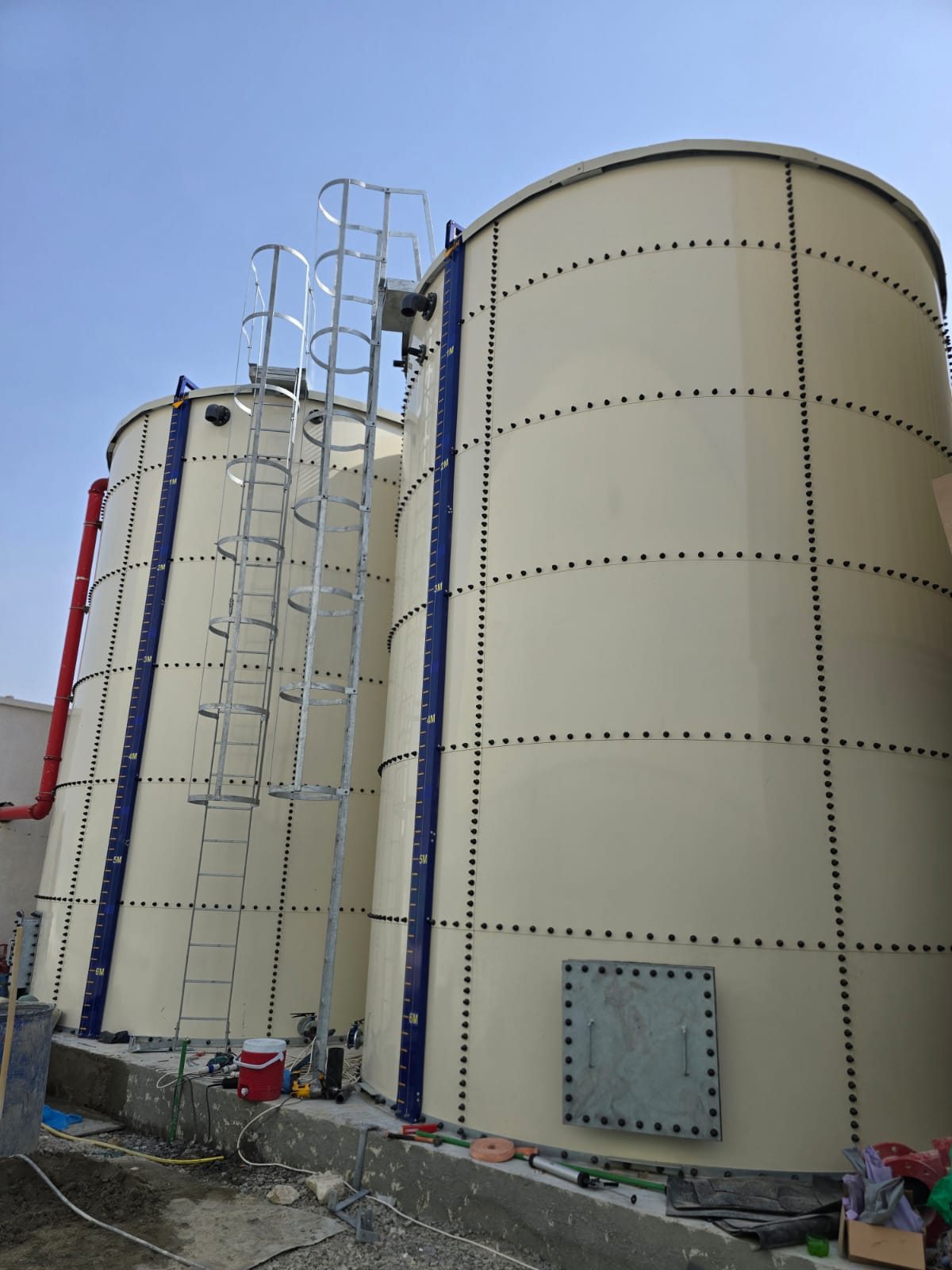

LADDERS & PLATFORMS

STEEL GRADE: Hot Dipped Galvanized
SAFETY: External Ladder, Ladder cage & Platform Railing & bottom a manhole

NOZZLES & FITTINGS

MATERIAL: Hot Dipped Galvanized
TYPES: Victaulic, Rolled, Grooved & flanged
VALVES: Ball, Butterfly, float valves

ACCESSORIES

Level Indicators, Geotextile

DESIGN STANDARDS

STRUCTURAL STEEL

ASTM A653M

STEEL COATING

EN10326-10327

DEAD WATER AND LIVE LOADS

FM Approvals Class 4020 Sec. 2.4.2 to 2.4.5, AWWAD103-09 Sec. 5.2.1 & 5.2.2

COLD FORMED CARBON STEEL STRUCTURES

ASTM A653M

WATER STORAGE TANKS FOR FIRE PROTECTION

NFPA-22:2008
